A printer of great versatility is becoming increasingly intelligent and can be connected, monitored and managed remotely. This is a smart TIJ printer owns the capability of integrating with automatic to improve business efficiency. Different aspect to a coding machine is worth your exploration for various advanced applications.
DJ45 plus & DJ45i
Over the following years, the innovative thermal inkjet printer DJ45plus and DJ45i designed specifically to meet the growing demands for industrial coding and marking.
Progression
Due to the ever more complex networking requirements of today‘s
industrial facilities, the focus is moving from simple surface printing to self-sufficient networked systems with shared intelligence. Today‘s
generation of our printing systems fulfill these new requirement profiles with variable high-speed printing, serial printing of complex data-bases, support for True Type fonts and Unicode character sets.
Modular Design
Diverse Connectivity
The optimized and upgraded printheads integrate modules such as heating, phase detection and amplification, positive air pressure output, high voltage insulation and printhead valves adapted to pigment ink.
Database Printing
High-speed list prints from database in csv file format. Plug and play USB stick data transfer or link to MySQL. The print rate is up to 10 prints per second. The database allows to contain image file.
Remote Control / Monitor
Multiple DJ45 plus can be managed, controlled and monitor through a print station. Dotjet had developed manage software for the host controller. Messages can be created on the print station and sent out. Printers status is always in monitoring Android smart phone and tablet version are available.
Multiple protocol embedded allow mutual communication.
Ideally suited for serialization and track & trace applications.
Printing Protocol
Our printer development program is always continuing, so you can look forward to the integration of new technologies. We always provide the best solution.
Directly print out the external data in text string.
The DJ45plus opens a print message file to print according the external data to be the file name. Every message file can build for a specific template as print needful.
The database can be pre-loaded in the DJ45plus. The 1st column of the database is defined for the data index. After receiving external data, the DJ45plus system is searching in the 1st column to meet data once matched, and pick up the data in the row for printing.
Network Printing
DJ45plus TIJ printer contains a network interface and protocol that allows host system to connect. Print jobs are sent directly from host systems to the printer without requiring an intervening host. Ideally suited for serialization and track & trace applications. A simulation software DJ_Link developed by Dotjet team assists you to get through the application with no barrier, please contact us.

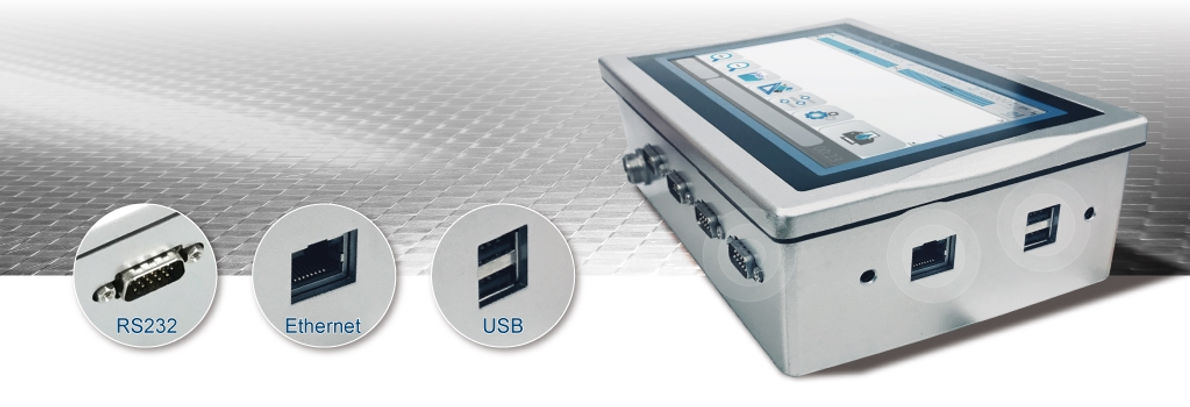

Versatility in Connectivity
Transfer of external data, or triggering of active fields for fast and secure data transfer.
Monitoring all operational statuses via protocol function.
DB print for variable database printing at 600 printouts/min.
Remote Control Monitor Multiple Printers
The DotW_CM software allows the user to easily connect to DJ45plus. The DotW_CM software is print station oriented. Messages can be created from the main print station and then sent to printers using an Ether- net connection or Wifi. It also can perform monitoring the status of all connected printers give you transparency into your packaging line operation. DotW_CM features automatic printer detection that allows the software to find all printers connected to the network.
Status window on mobile devices with indication of all operational statuses, ink levels and current printing label.
Clear display of all connected print systems.
Start/stop of printing. Set-up of printing parameters and configuration of print systems.
Administrating and creating print message.
Remote sending database, image file and print template to printers in connectivity.
Printing Sample
Specifications
Technology : hpTIJ2.5
Power Requirement : AC110-220V, 50/60HZ
Display : 7” Color LCD with LED backlight
Operating Temperature : 5℃to 45℃ (41°F – 112°F)
Controller Operating system : Linux
Message Storage : Up to 999 messages
Print Head Controlled Ability : Two hp TIJ2.5 print heads
Print Line : Multuple depand on character size
Print Height : Selectable font size from 1mm to 12.7mm
Print Speed : 60m/min (Water ink) 90m/min (Solvent ink)
Max. Print Length : 1 meter
Print Resolution : Max. 600dpi x 600dpi / Regular 300dpi x 300dpi
Ink Throw Distance : Recommended 6mm
LED Indicators : Ink low, print on/off
Print Capability : Alphanumeric, logos, date/time, shift code, serial number, lot/box number, GS1 barcodes/2D code, database and 27 languages characters print, External data
User Interface : WYSIWYG. Multiple-language available (some may need translation)
External Data Interface : RS232, USB, Ethernet, TCP/IP
Database Print Format : CSV
Particular Features : MySQL database, print data collection, protocol control, image in database, multiple printer remote control by DotW_CM software
Print Head Data Line : Standard 75cm, maximum 200cm
Weight : Controller 820g (Excluding bracket)
Print head 380g (Excluding cartridge and bracket)
Dimension (L/W/H) : Controller 205x140x68 (mm) /8.1x5.5x2.7 (inches)
Print head 130x115x94 (mm) /5.1x4.5x3.7 (inches)
Optional : Encoder, bulk ink supply, backstage analysis/manage software
